TPC2464
High-Production Multi-Profile Plasma Cutting with Automated Loading
- Cut, Miter, Cope, Burn Holes and Slots
- Round stock up to 6.625”
- Square & Rectangle stock up to 6” x 6”
- Channel stock up to C6 x 13lbs
- Angle stock up to 6” x 6”
- Flat stock up to 8”

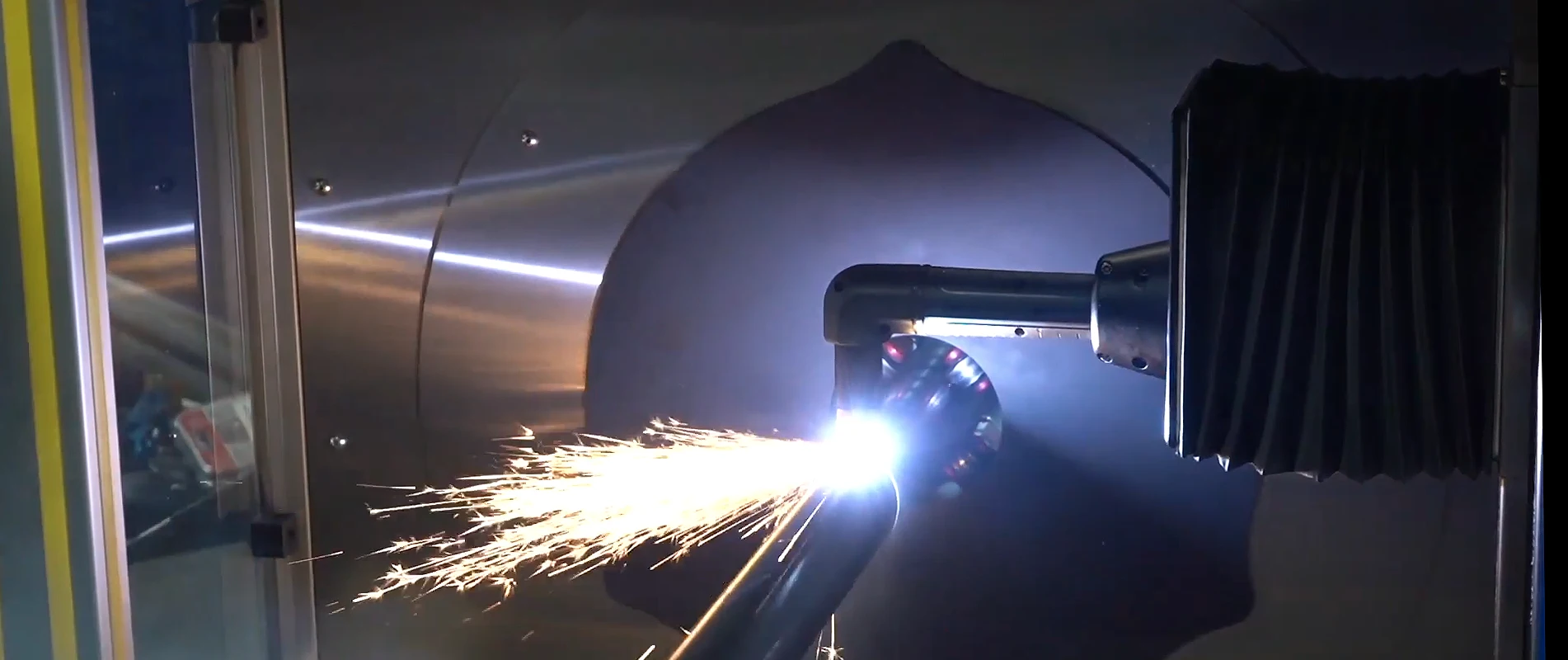

CNC Tube Plasma Cutting for Maximum Production
For fabricators and OEMs that need to process more tube, square, angle and channel material faster, our TPC2464 delivers. This CNC driven plasma cutting system with automated loading offers programming flexibility as well as a robust build quality that’s made for today’s fast-paced manufacturing environment.
Designed to support shops at different stages of growth, the TPC2464 is available in both Pro and Pro-X Series configurations – giving you the flexibility to choose the solution that best aligns with your workflow, production goals, and level of automation.
If you’re new to CNC cutting, our proprietary PieceMaker software makes it easy to program parts at the machine right from the prints. Designed to get fabricators comfortable quickly, it allows you to program the machine by inputting a few data points through a simple machine-side interface.
For shops with more advanced programming and connectivity needs, the TPC2464 integrates with Lantek’s Flex 3D system. This industry-standard programming package allows you to maximize production efficiency by importing just about any file type and allowing designers to send files to multiple machines.
Key Features & Benefits of the TPC2464
- Maximize Efficiency and Capacity With Automated Loading From 2-Foot Magazine
- Increase Operator Safety and Reduce Risk of Injury
- Great for Shops That Process Large Pieces or Multi-Stick Batches
- Excellent Alternative to Laser Cutting at a Lower Cost

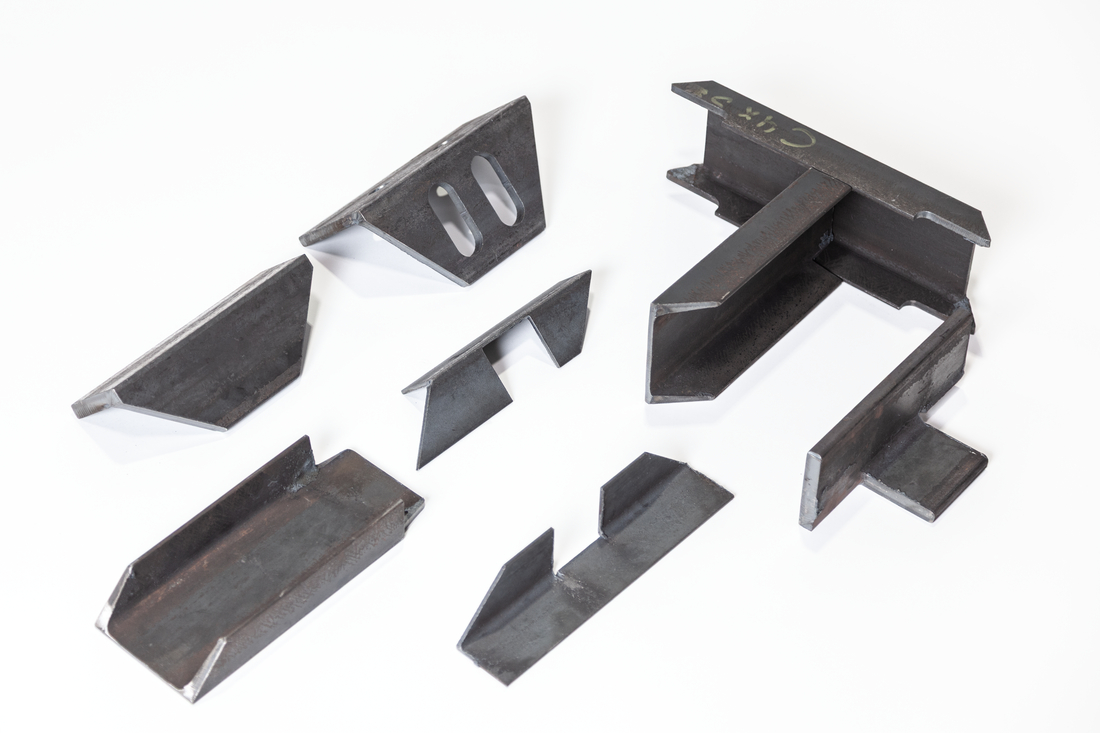

- Process Round, Square, Rectangle, Channel, Angle and Flat Stock

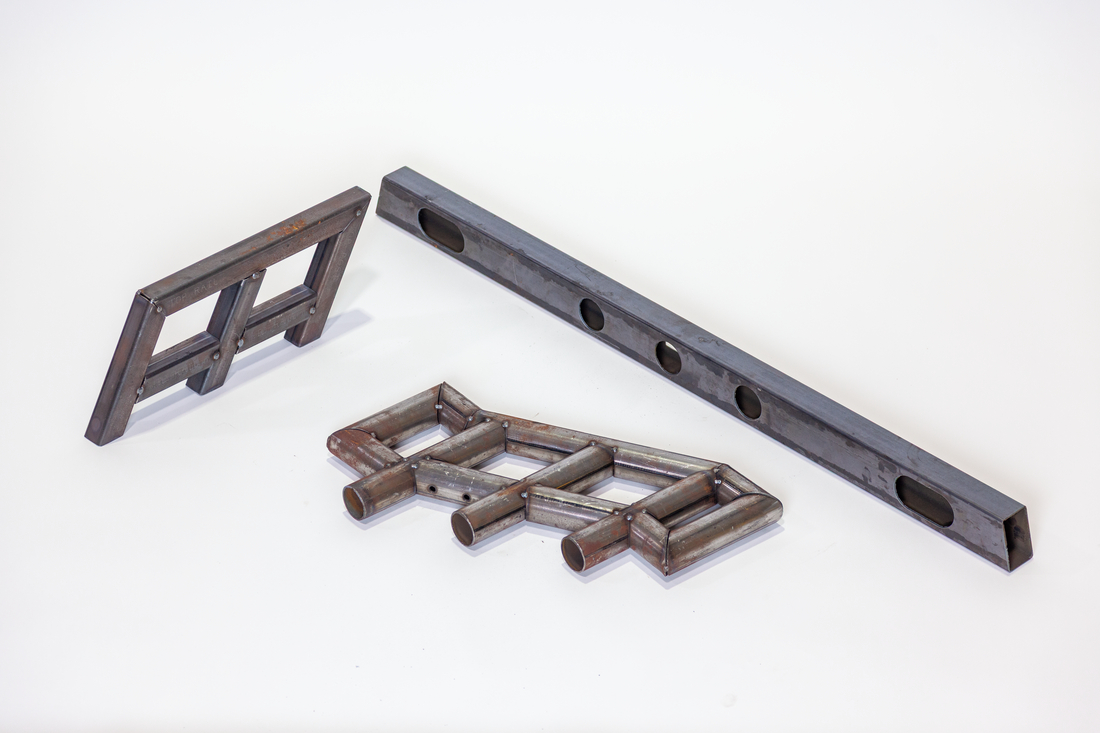

- Save Time by Combining Multiple Processes Into a Single Step

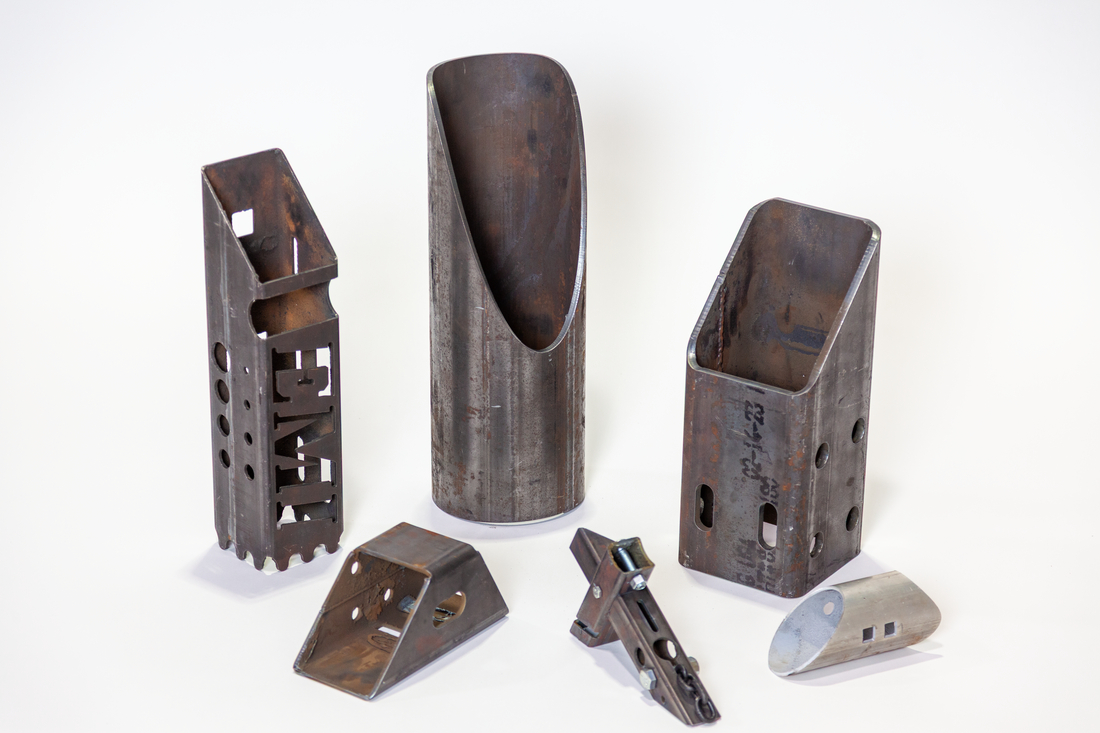

- Cut, Miter, Cope, Burn Holes and Slots
- Cut Any Combination of Diameters and Intersection Angles With No Tooling Changes
- Eliminate Manual Measuring, Sawing, Notching, Drilling and Deburring
- Eliminate Repetitive Material Handling and Downstream Processes

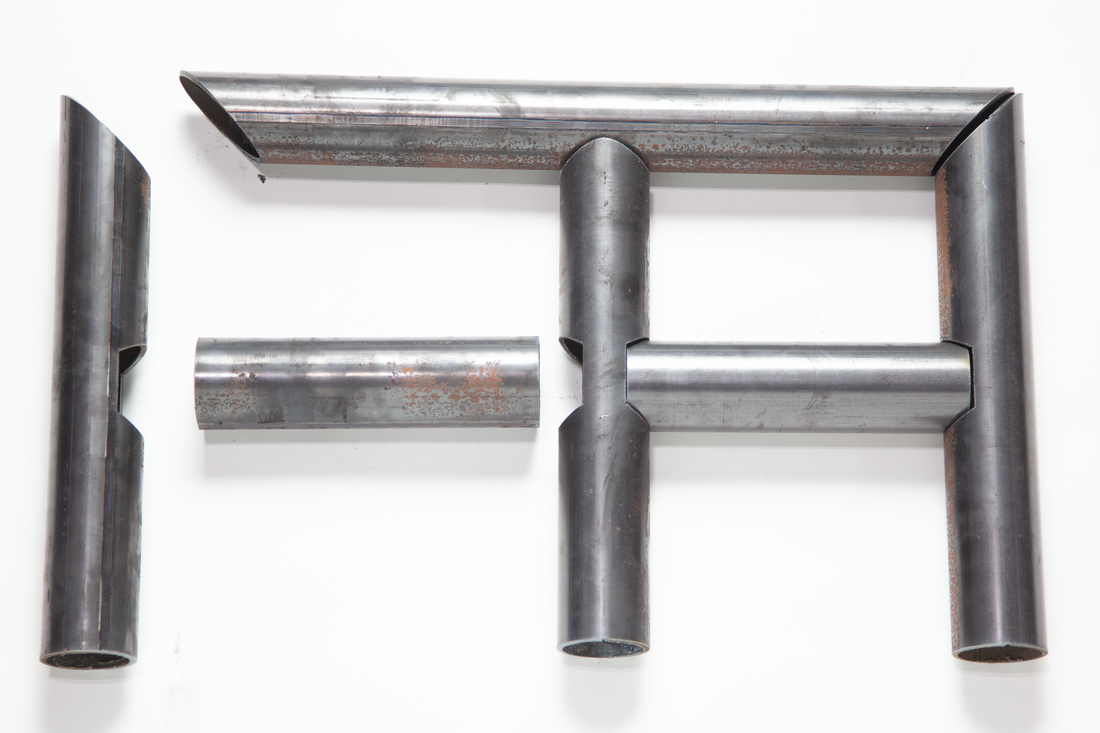

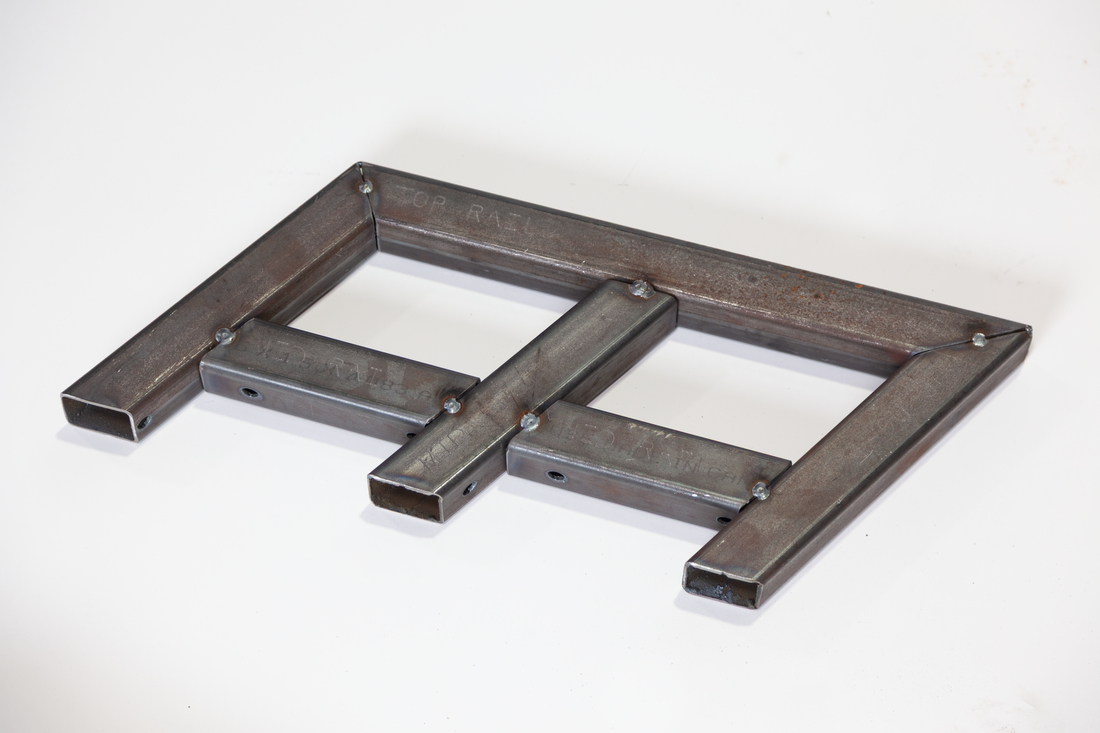

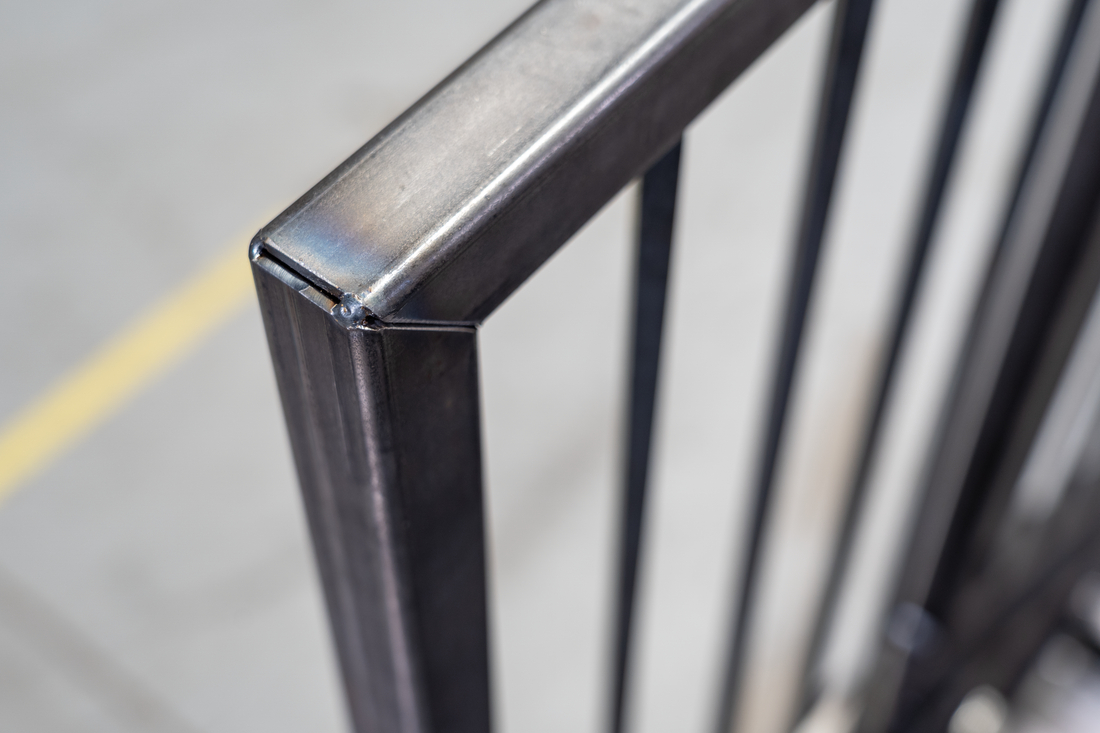

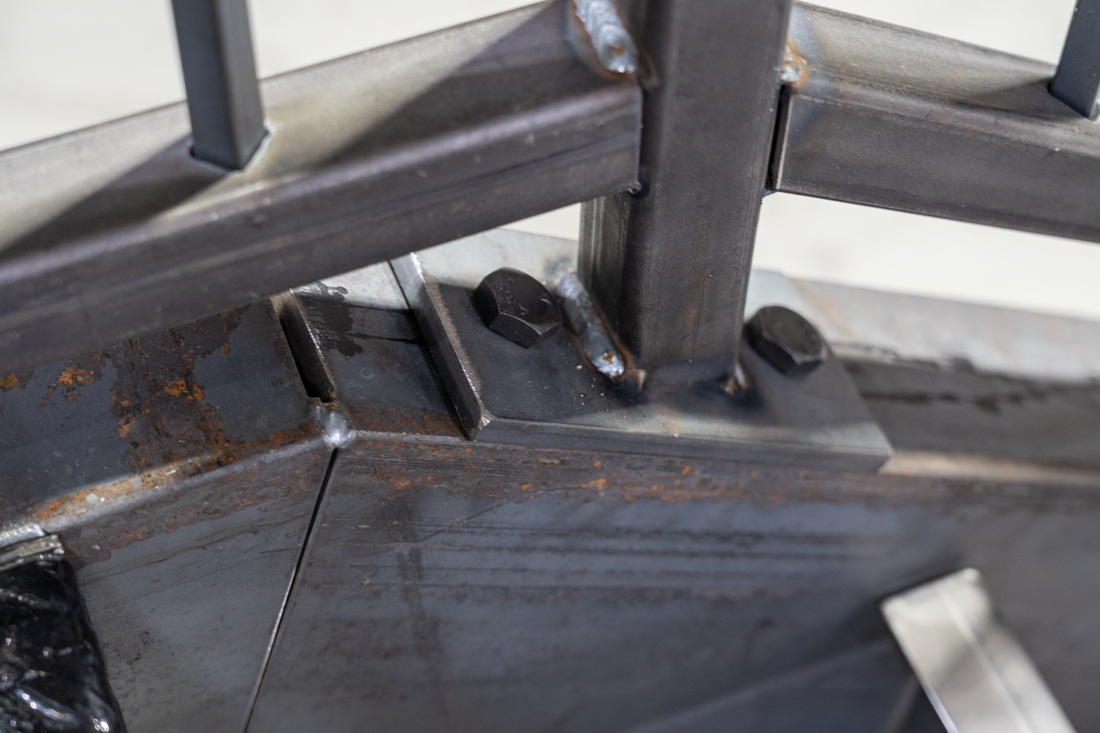

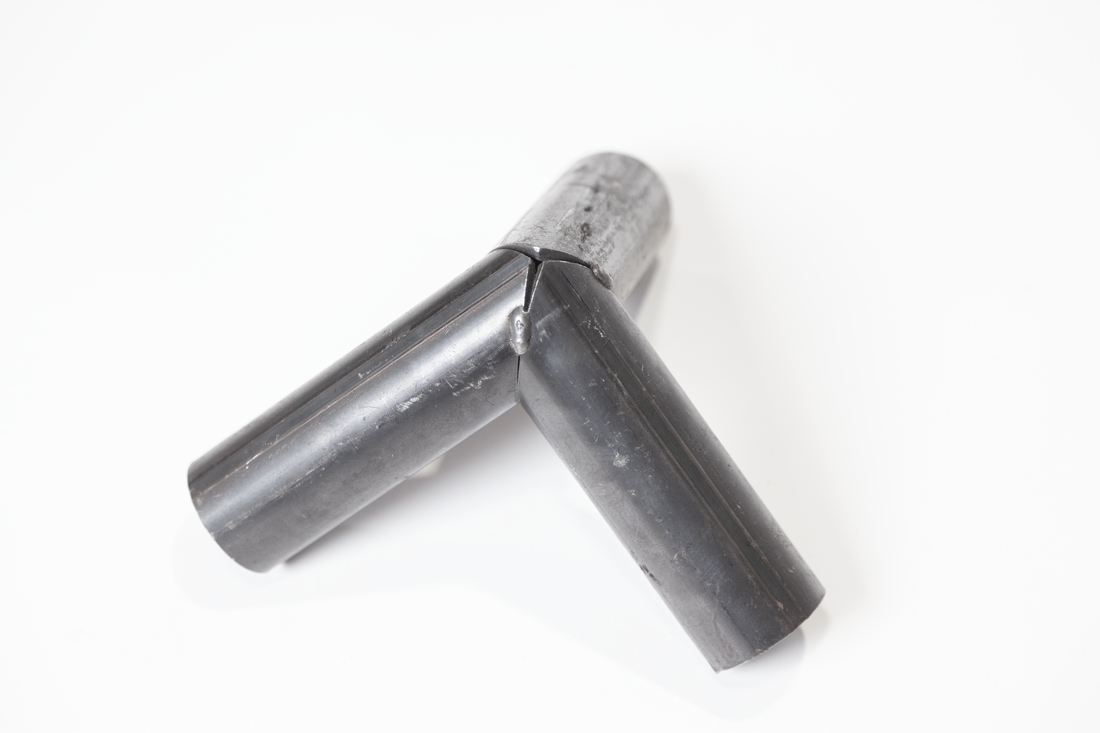

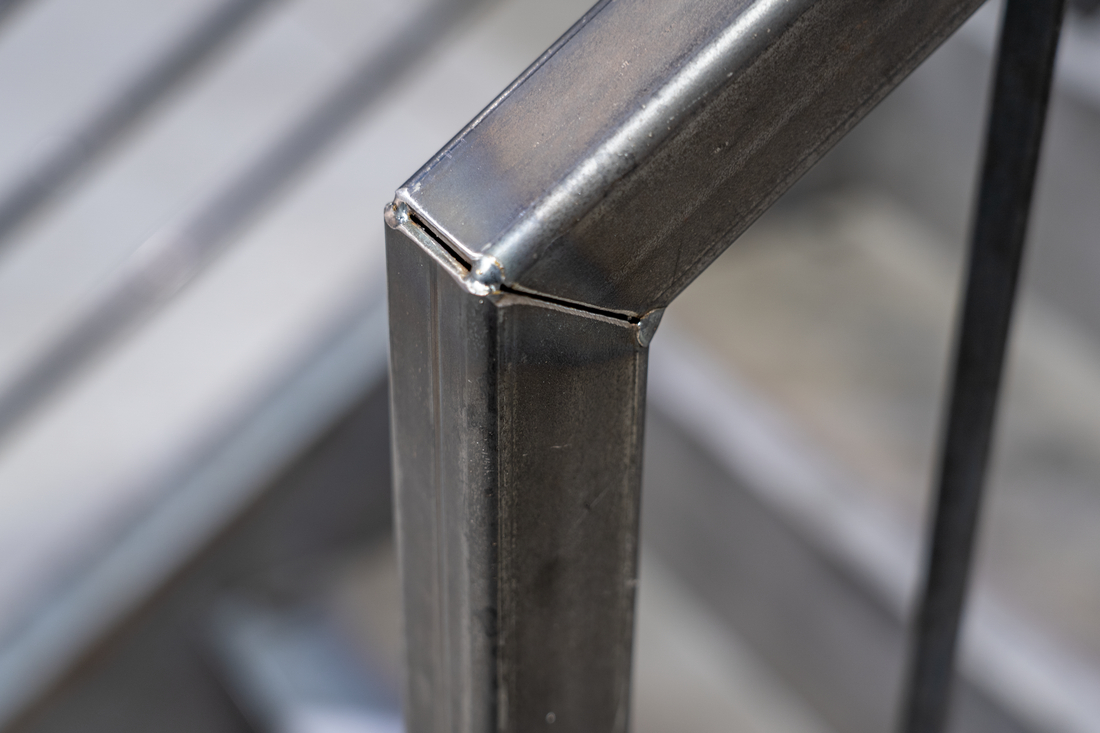

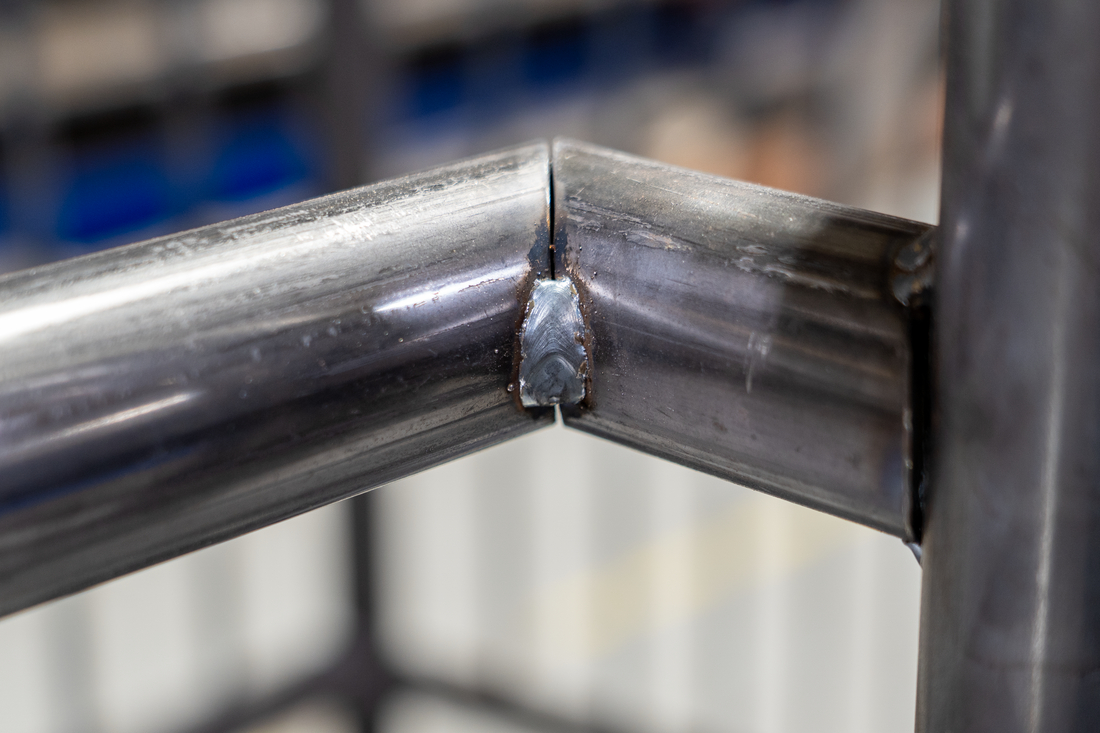

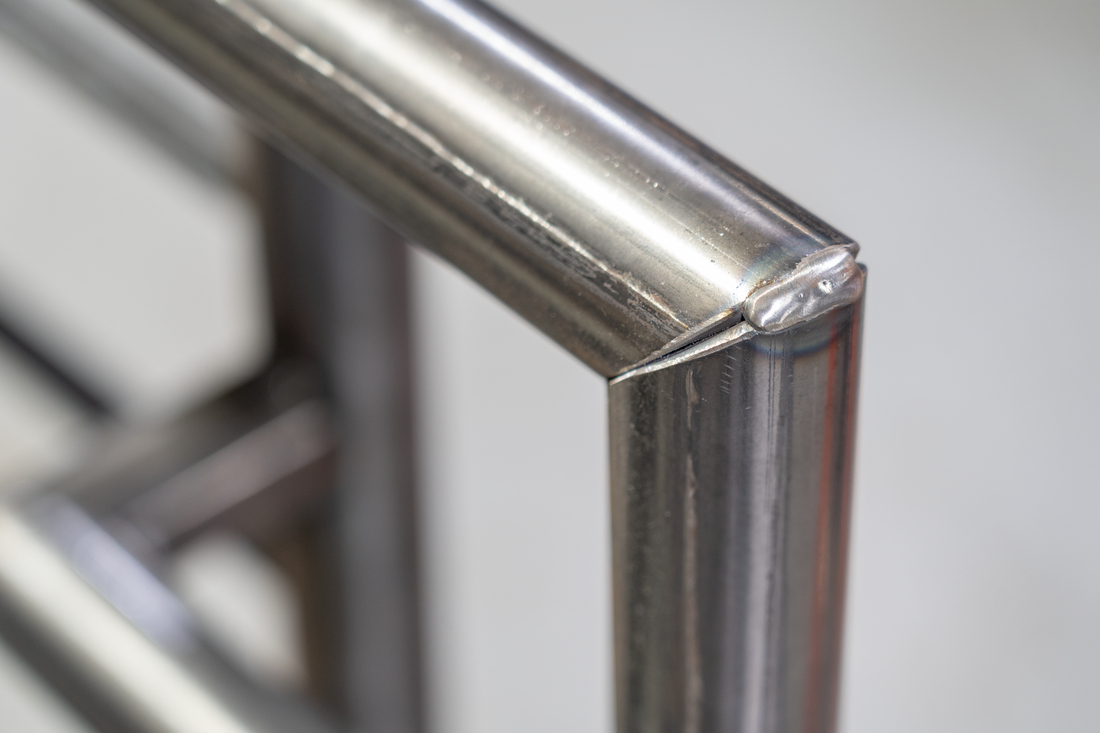

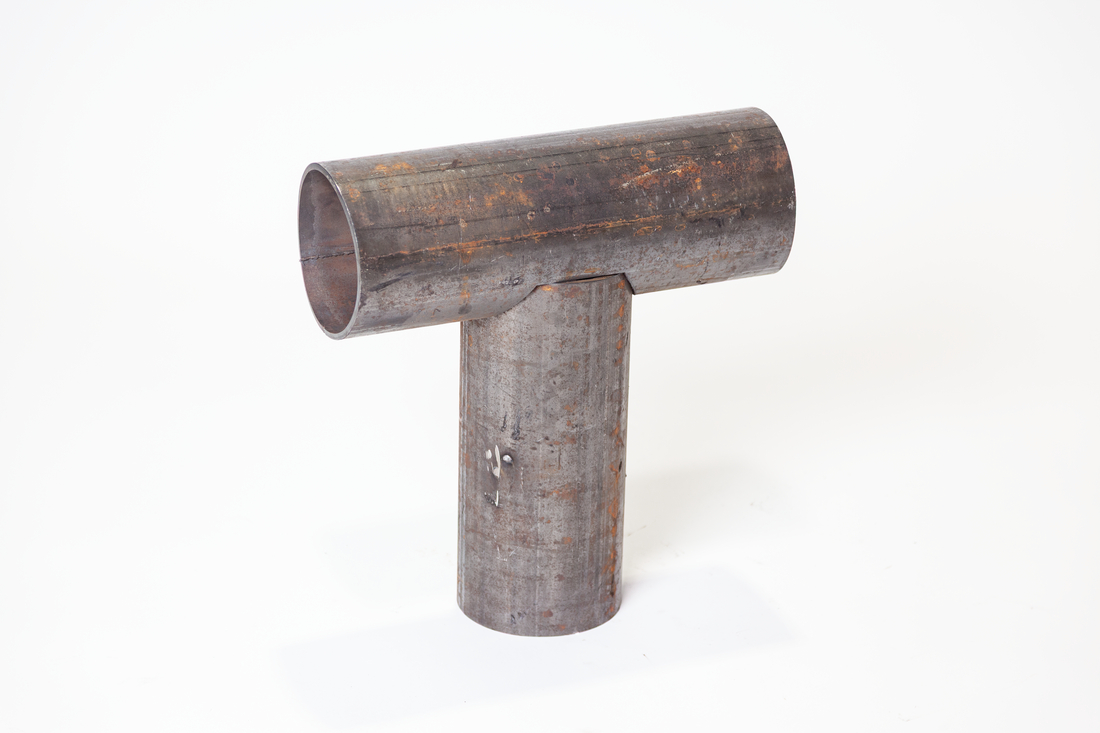

- Produce Weld-Ready Miters and Copes Right From the Machine
- Significantly Improve Fit-Up and Weld Penetration
-
Pro Series
The TPC2464 Pro Series is pre-configured for productivity, combining automated loading with straightforward operation to keep material moving efficiently. It’s a practical solution for shops focused on consistent output, using a proven, machine-side workflow to get parts into production quickly.
Profiles & Material
- Basic Cutting & Burning Geometry
- Hypertherm Powermax SYNC 105
- Multi-Profile Jaw Sets & Lift Caps
- Auto-Loading System
Controls & Electrical
- Uninterrupted Power Supply

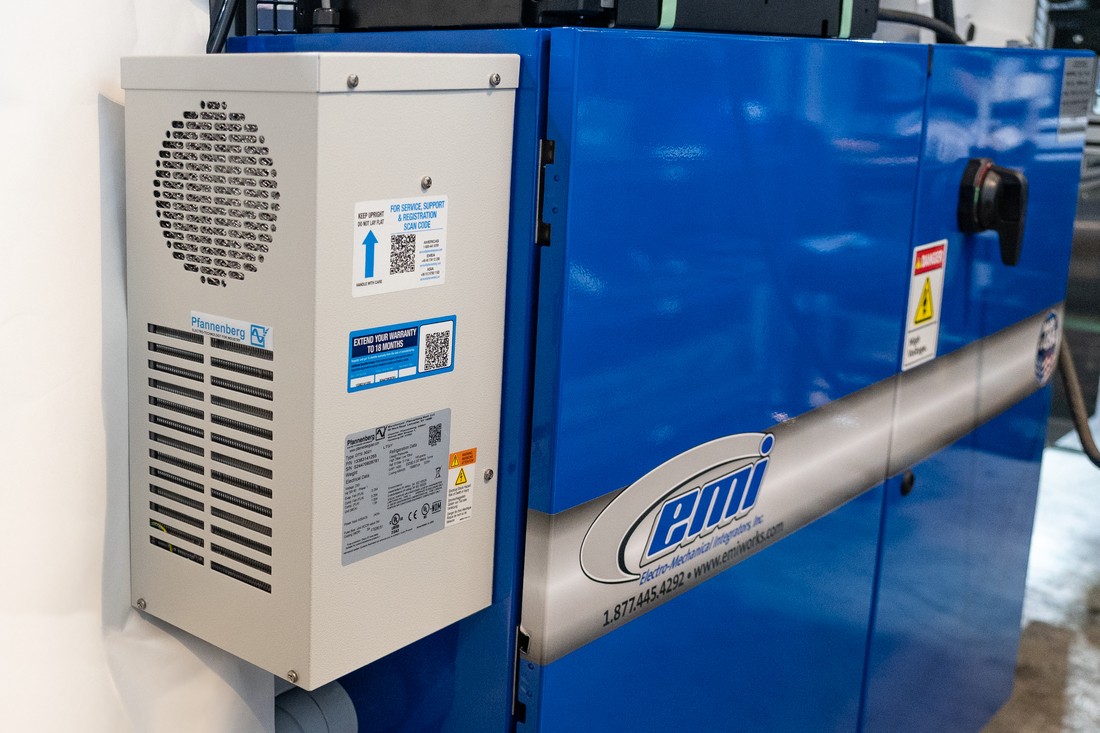

- Cabinet Air Conditioner
- Manual Cartridge Tracking

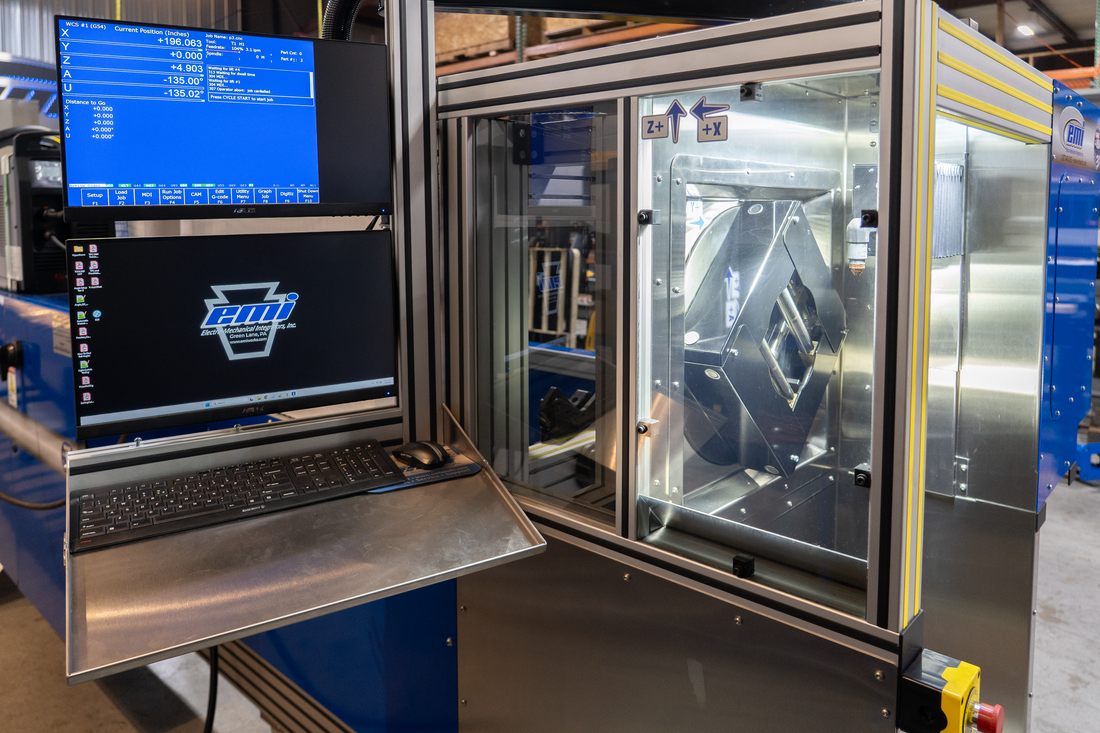

- Controls at Machine
Software
- Standalone Shop Floor Machine
- PieceMaker Software & Training
- Input Parts Manually at Machine
- Reference Part Specs from Paper Prints
More
- Additional À la Carte Options Available
- EMI Toolbox
- Optional Consumables
- Faster Lead Times
-
Pro-X Series
The TPC2464 Pro-X Series is a full-spec system built for high-demand environments that require greater control, connectivity, and throughput. Designed for more complex applications, it supports integrated workflows and advanced production capabilities to help operations scale with confidence.
Profiles & Material
- Complex Cutting & Burning Geometry
- Hypertherm Powermax SYNC 105
- Multi-Profile Jaw Sets & Lift Caps, Plus 2 Options
- Auto-Loading System
Controls & Electrical
- Uninterrupted Power Supply
- Cabinet Air Conditioner
- Hypertherm SYNC Mobile App

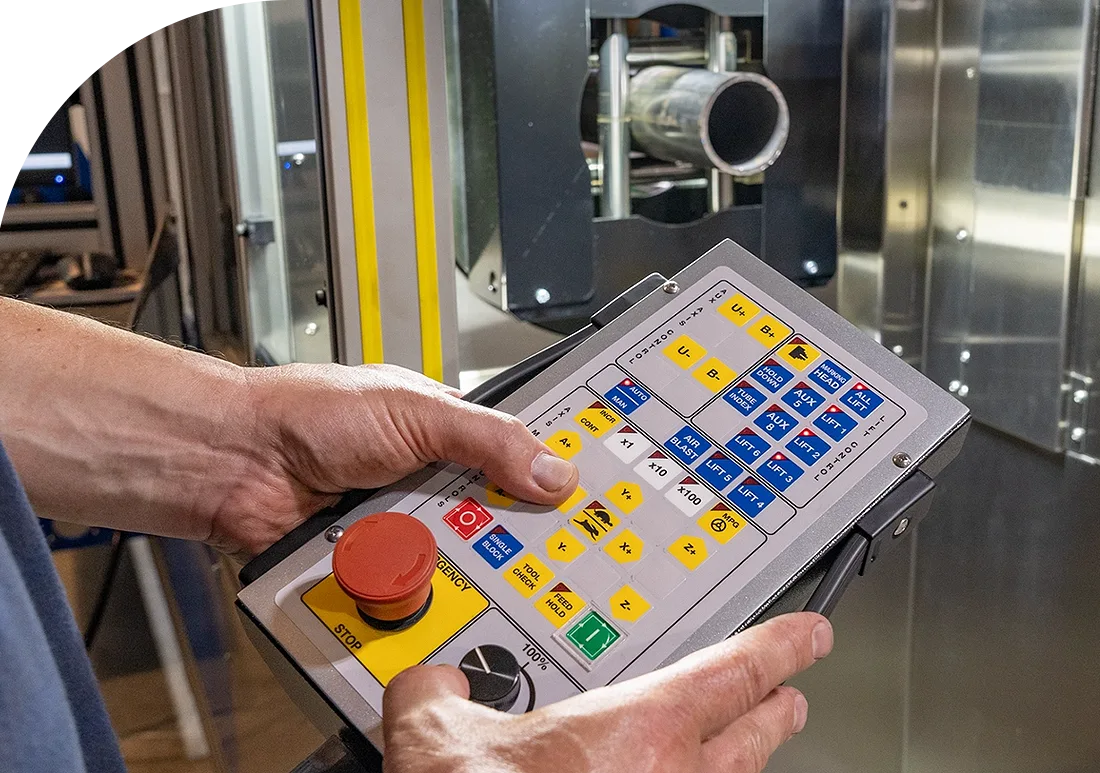

- Wireless Jog Pendant Plus Controls at Machine
Software
- Imports STEP, DSTV & NC1 Design Files
- Lantek Software & Training
- Push Design Files to Multiple Machines
- Lantek STEP Importer
More
- Full-Spec Machine Includes Common Options
- EMI Toolbox
- Starter Consumable Kit
- Priority Lead Times
-
Additional Features

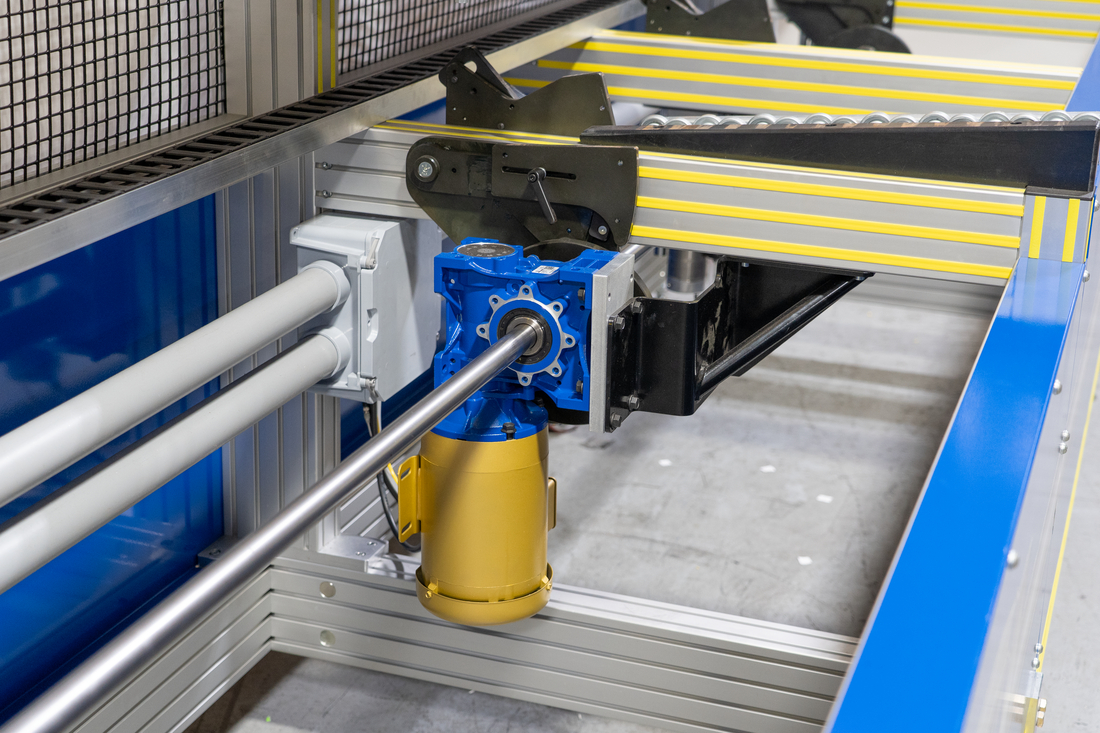

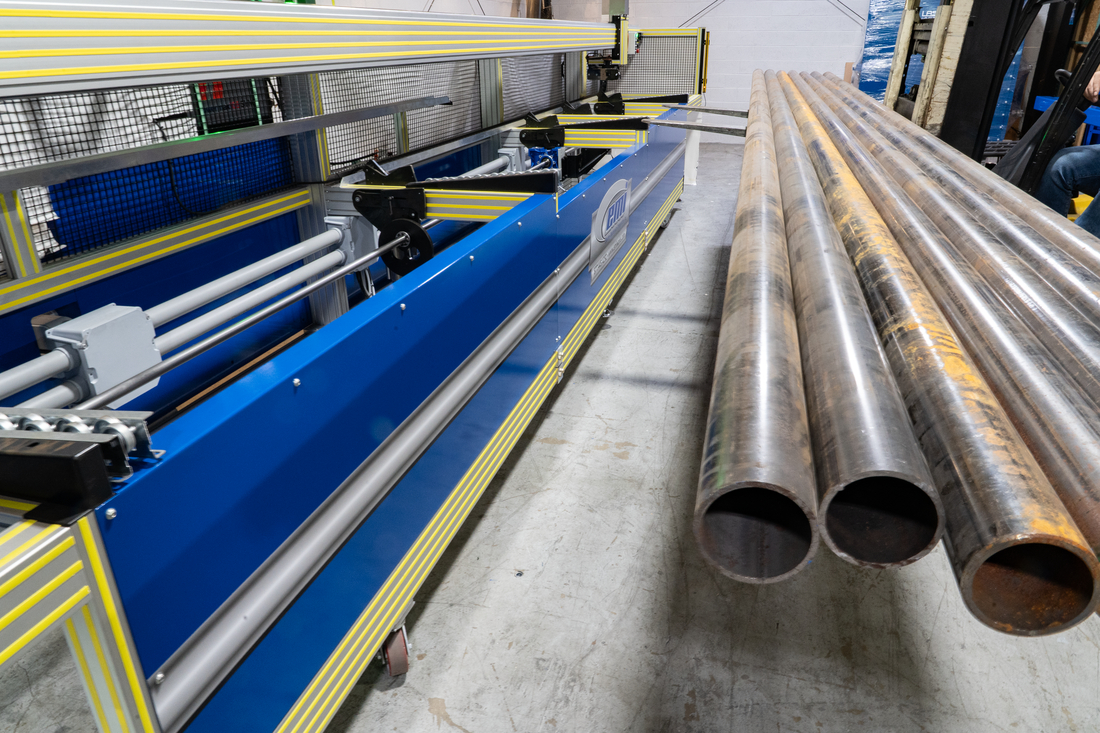

- Machine Auto-Feed and Auto-Load Capability Reduces Time Between Sticks and Dramatically Increases Production Rate

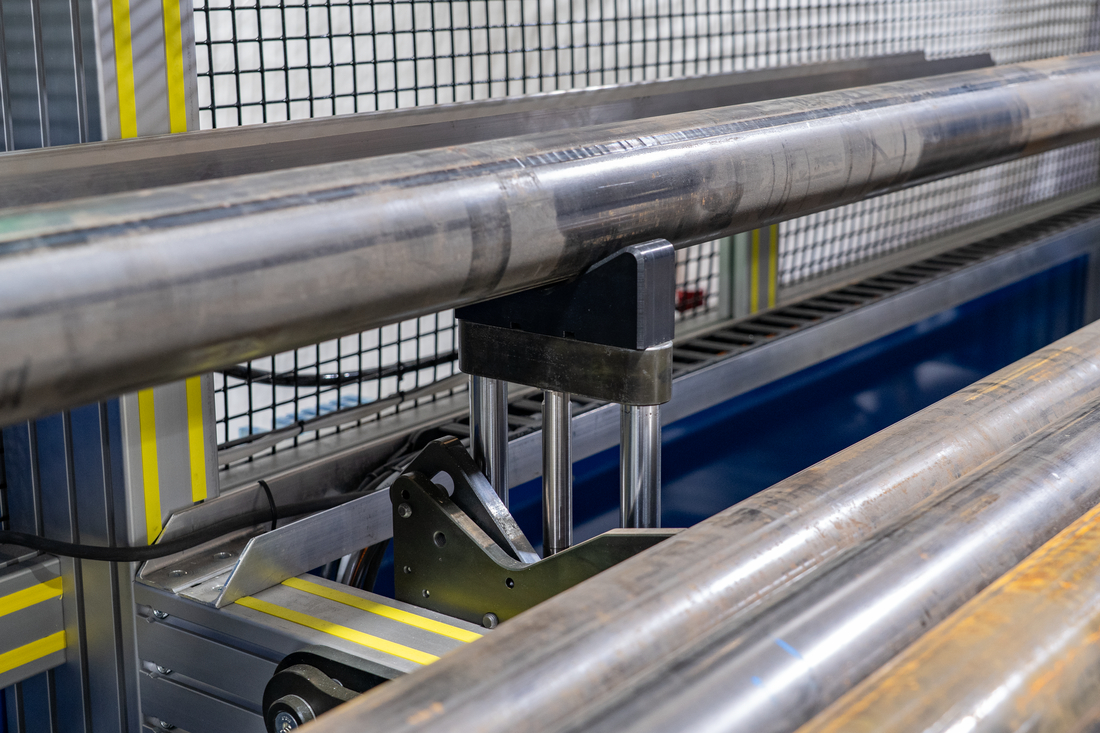

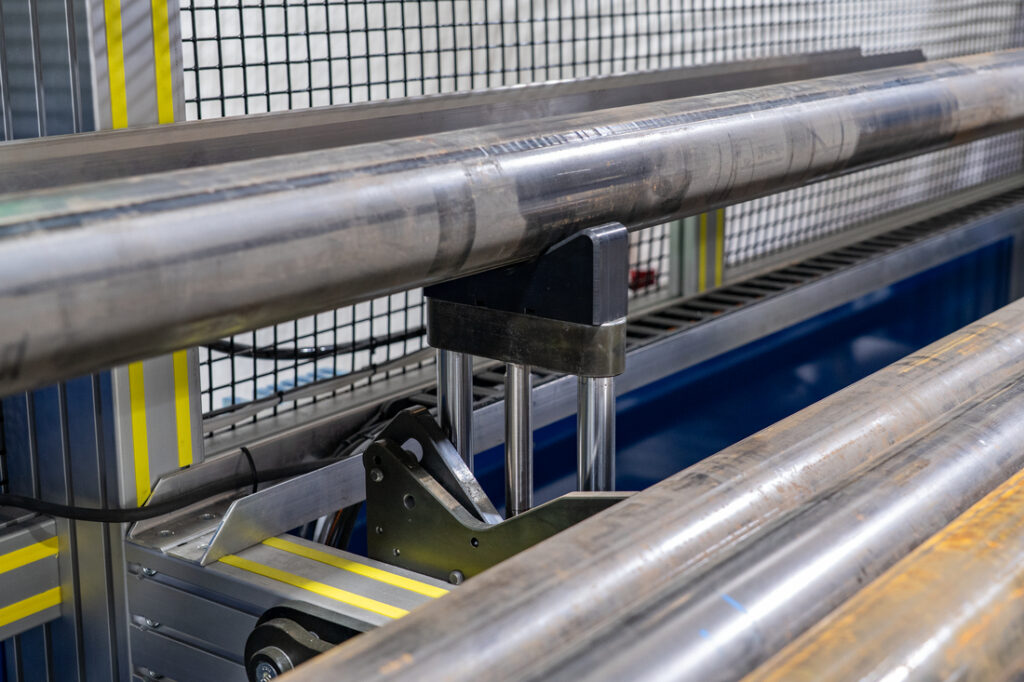

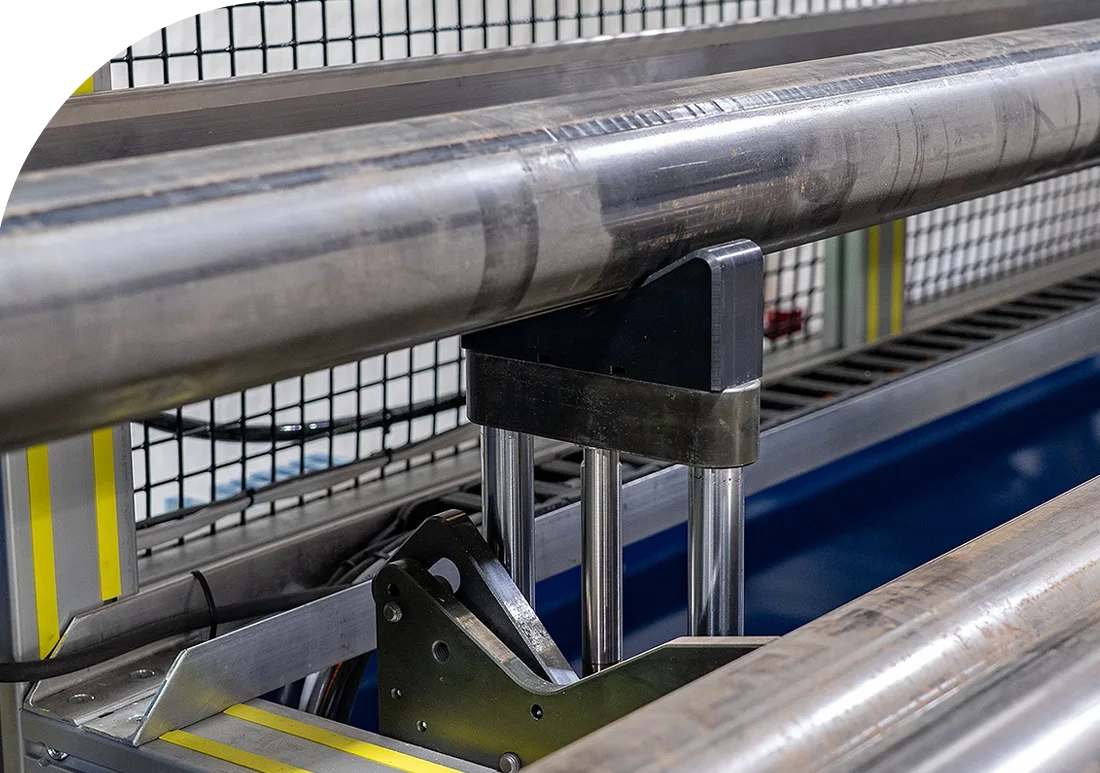

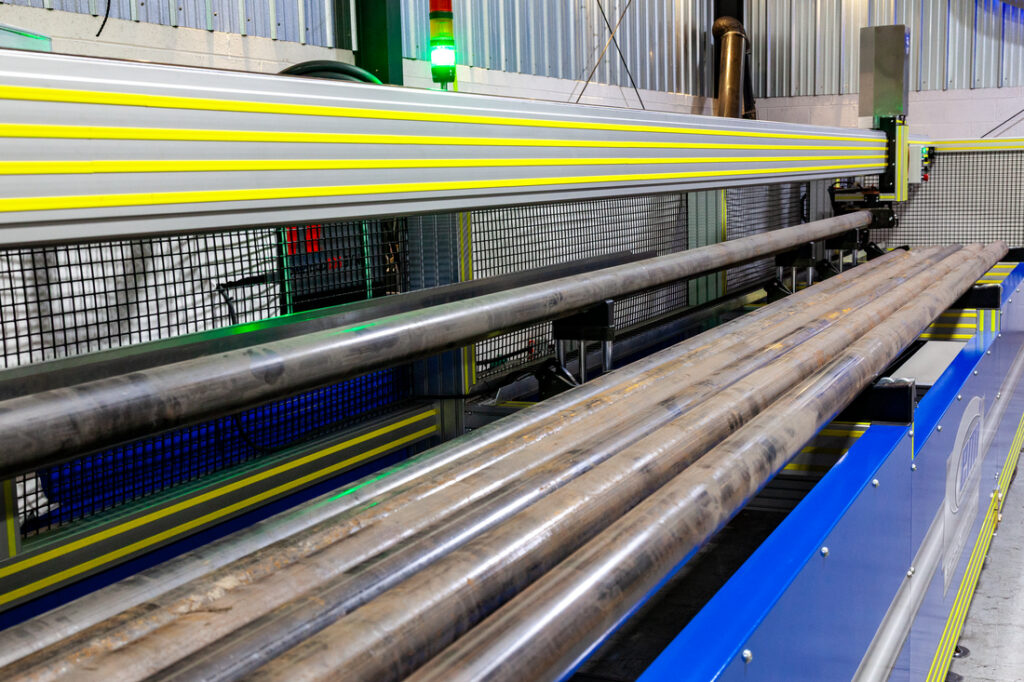

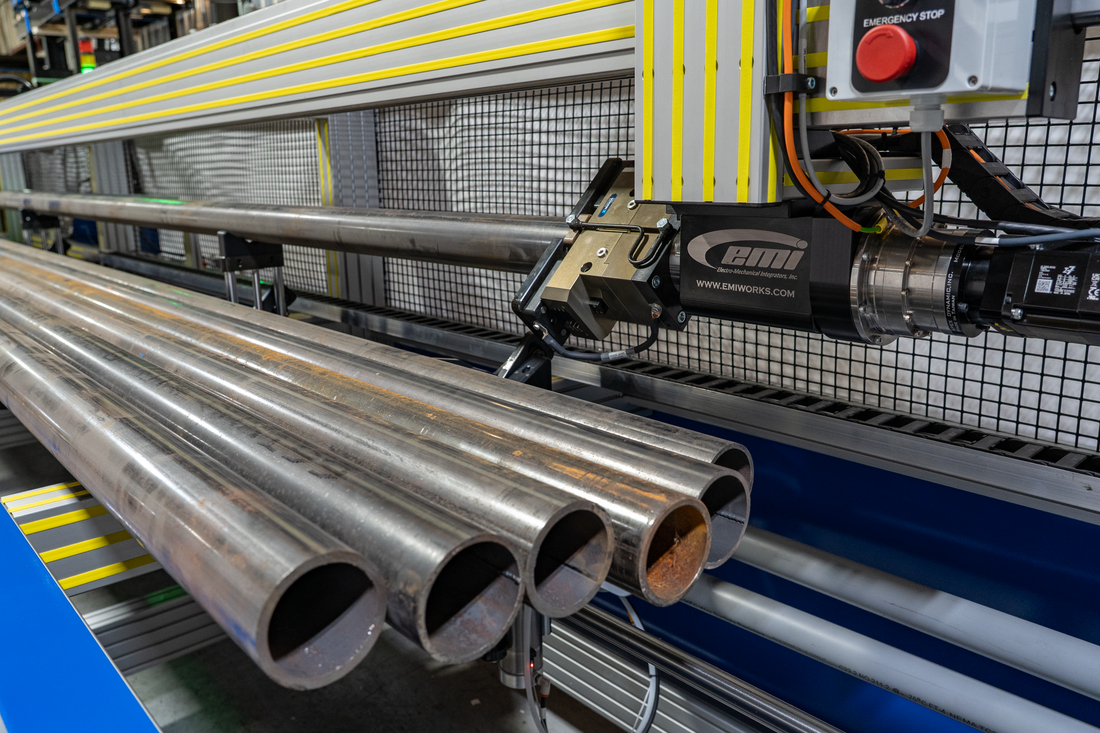

- Automated Loading System Allows Heavy Material to be Loaded Without Operator Interaction

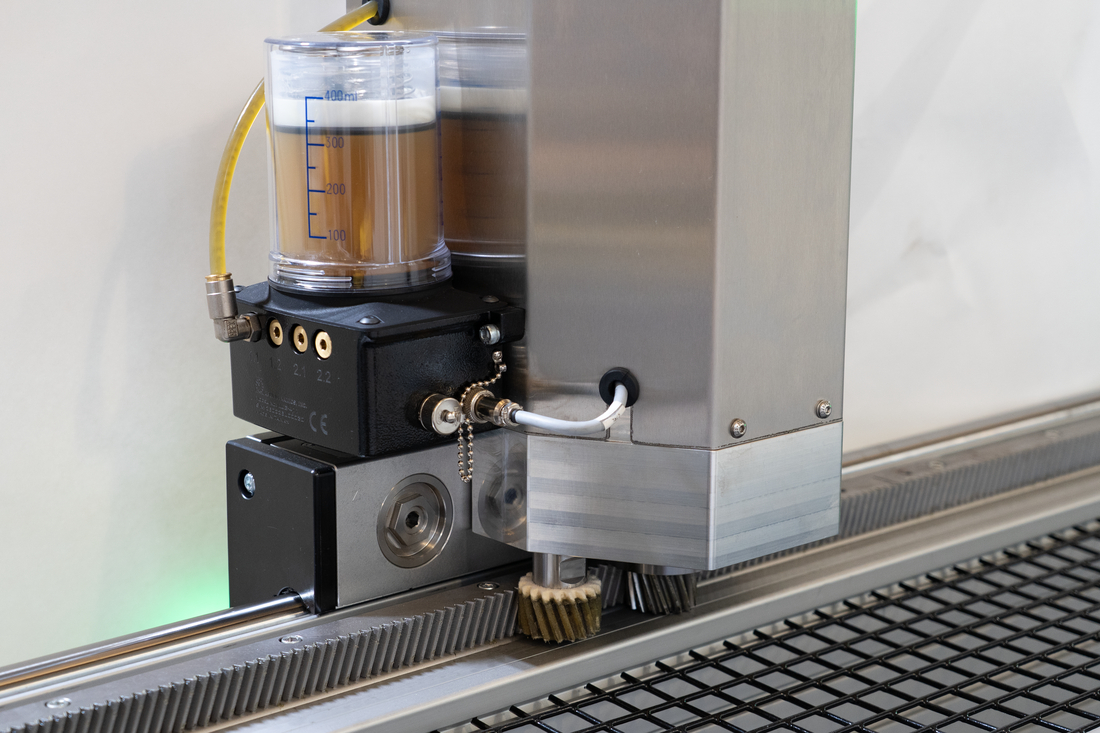

- Closed-Loop Servo Motors for Best-In-Class Accuracy and Repeatability

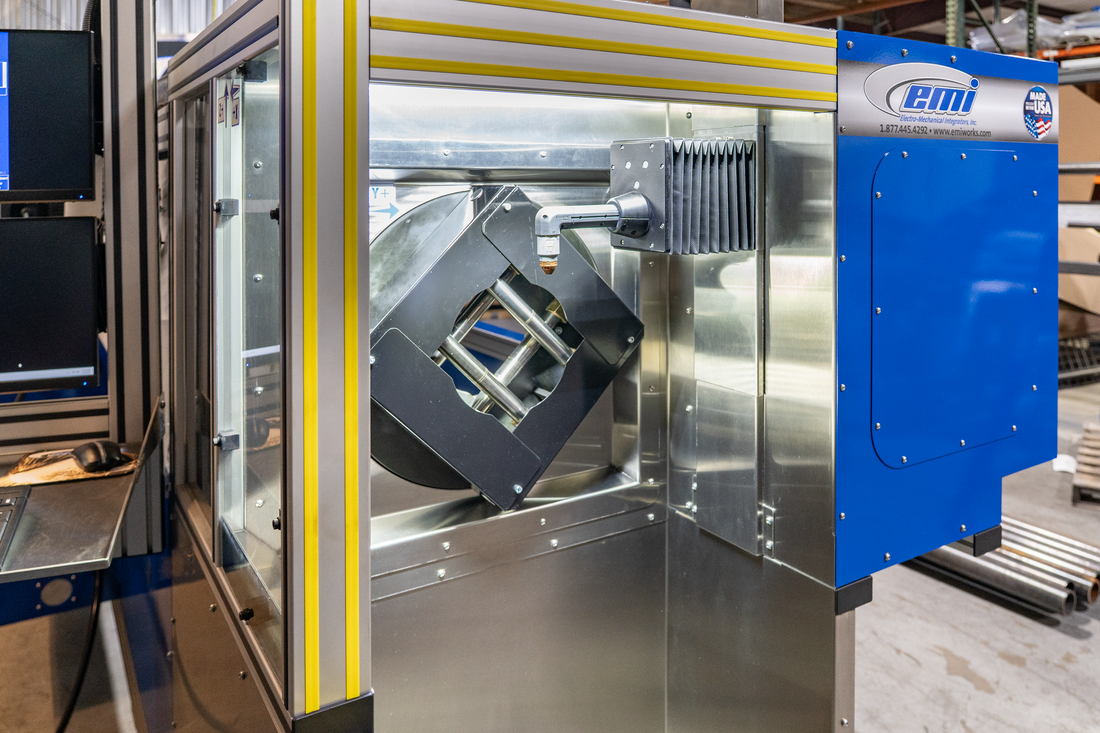

- Breakaway Torch Prevents Costly Downtime

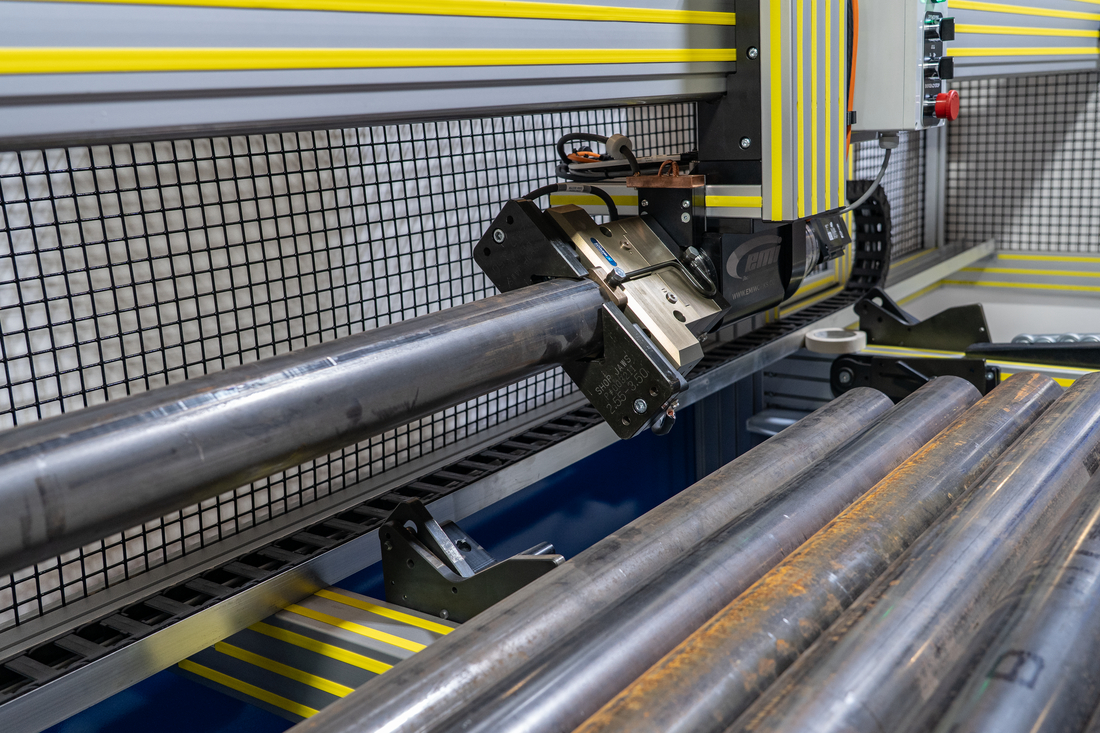

- Self-Centering Front Support for Easy Material Changeover
- Universal Front Support Reduces Time Switching from One Profile to the Next
-
Specifications
Processes
- Cuts
- Miters
- Copes
- Burns Holes & Slots
Loading System
- Automatically Loads Batches of Like Materials
- Continuously Feeds the Machine Without Operator Input
Material Sizes
- Round stock up to 6.625”
- Square & Rectangle stock up to 6” x 6”
- Channel stock up to C6 x 13lbs
- Angle stock up to 6” x 6”
- Flat stock up to 8”
Available Plasma Technology
- Hypertherm Powermax105 SYNC
Material Length
- Maximum 24’
Full Stick Load Capacity
- Maximum 30 lbs / ft
Max Work Piece Weight
- 840 lbs
Machine Footprint
- 359″ long, 90″ wide
Power Requirements
- Machine Cabinet Requirements
220VAC, 20A 3-PH - Hypertherm Requirements
Varies based on Powermax model
-
Programming
PieceMaker
Standard- For easy programming right on the shop floor
- Easily key in values at the machine right from the prints
- Get up and running with CNC automation fast
- No need to change shop processes or add engineering
Lantek Flex 3D
Optional- For advanced programming and integration
- Easily import industry-standard work files
- Push programs and details to multiple machines
- Maximize shop workflow and efficiency
- Integrate with ERP/MRP systems
-
