AC-PC

The Ultimate Angle, Channel and Flat Bar Processing System

  • Cut, Miter, Cope, Mark, Burn Holes and Slots
  • Cut Any Size or Profile Without Changing Tooling
  • Channel stock up to C12 x 30lbs
  • Angle stock up to 8” x 8”
  • Flat stock up to 12”
Get Pricing

Plasma Cutting and Processing for Angle Iron, C-Channel & Flat Bar Stock

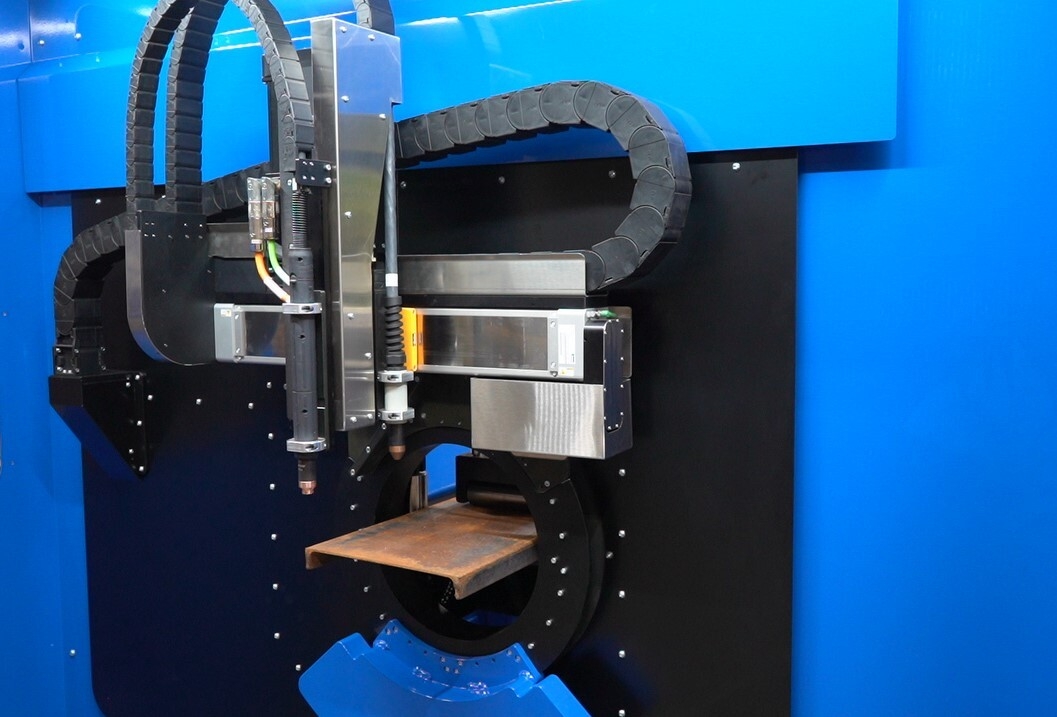

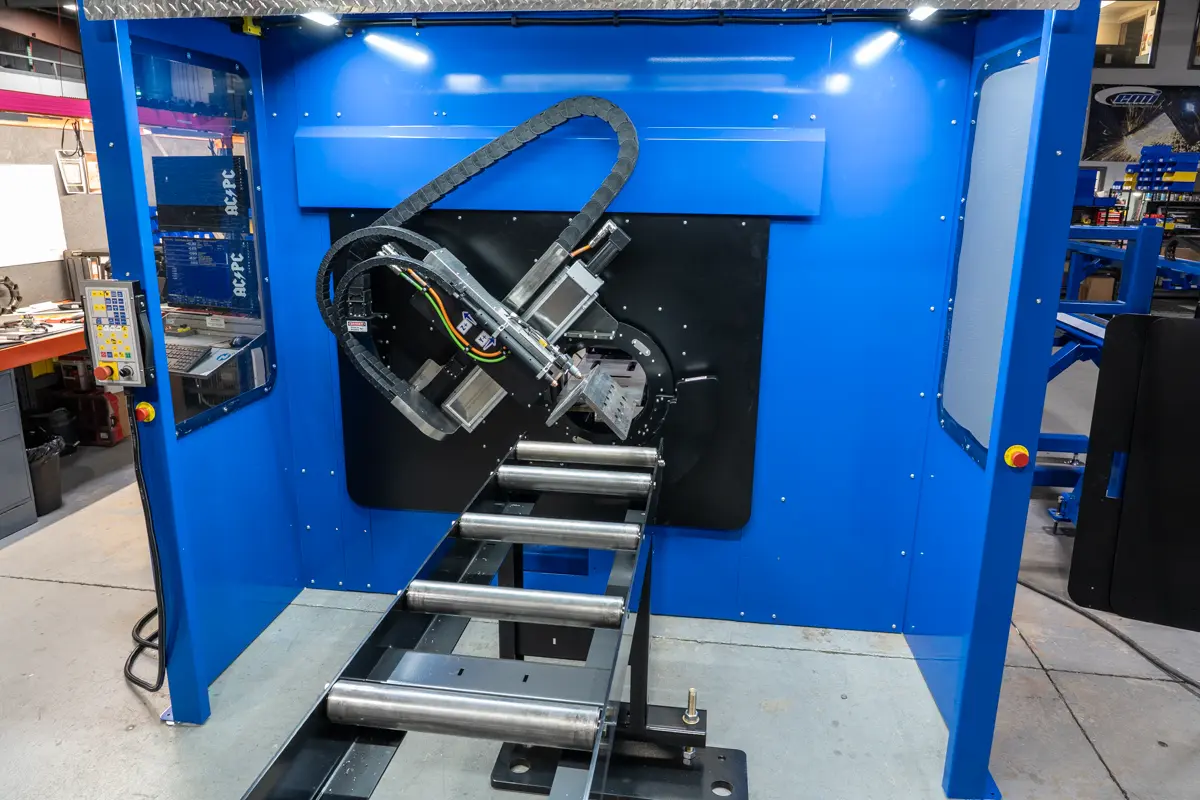

The EMI Angle and Channel Processing Center, or AC-PC, is the perfect machine for busy fabricators who cut, mark, drill and otherwise process angle iron, C-channel and flat bar stock. Designed specifically to process these types of materials, the AC-PC works quickly and accurately to output a high volume of parts.

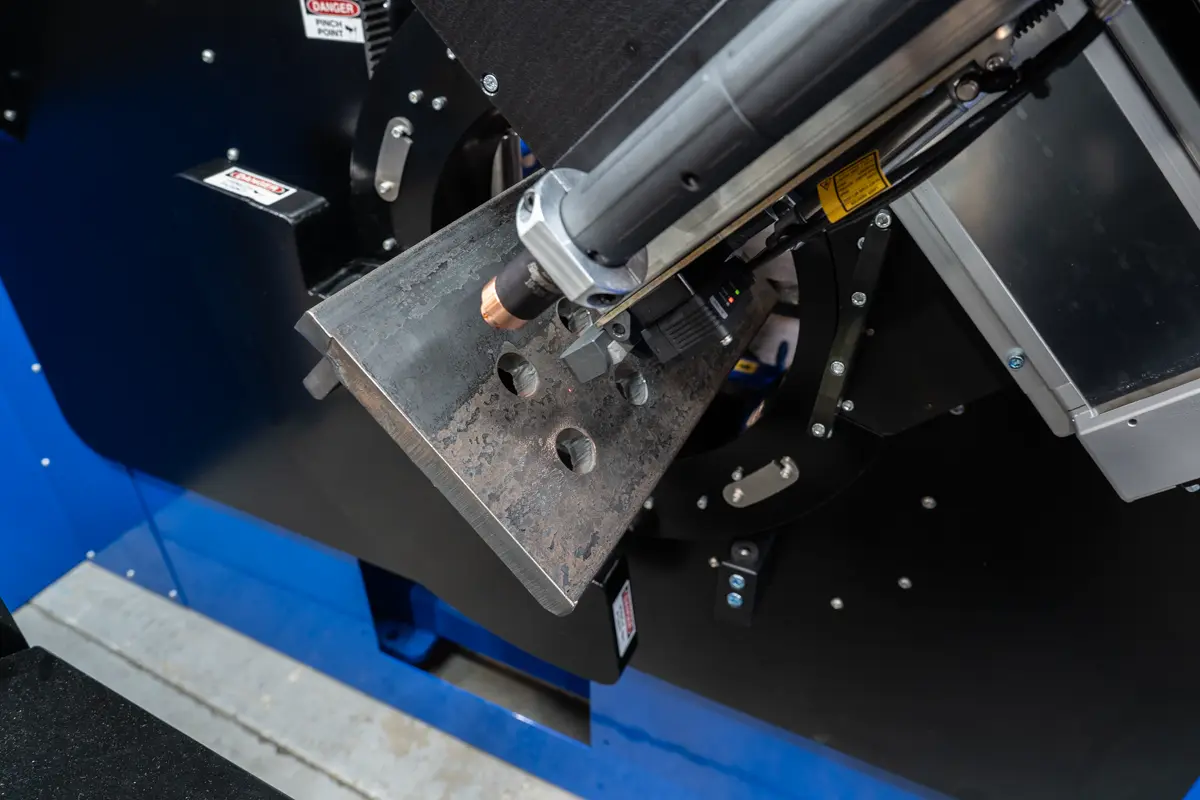

When it comes to fabricating steel stair stringers and handrails, the AC-PC truly excels – by cutting, drawing stair layout lines, and burning holes all in one smooth operation. By incorporating angle and channel cutting capabilities, the AC-PC can simultaneously cut and burn bolt holes for angle clips, function as a pipe angle cutter, and deploy a wide range of time-saving features and functions. This integrated “all-in-one” approach means huge time savings for fabricators.

Best of all, with a state-of-the-art laser alignment system and 60’ capacity, this CNC plasma cutting machine is great for shops looking to increase stair stringer capacity, replace an old angle line with a more versatile piece of equipment, or offload small work from their beam line or coper.

For programming, the AC-PC utilizes Lantek’s Flex 3D system. This industry-standard software package allows you to maximize production efficiency by importing just about any file type, detailing complex files, and creating nests. In addition it integrates with advanced ERP/MRP systems and allows designers to send files to multiple machines in order to keep a high volume of work flowing.

Key Features & Benefits of the AC-PC

  • Process Channel, Angle and Flat Stock
  • Cut Any Combination of Material Sizes and Profiles With No Tooling Changes
  • Make Stair Stringer Fabrication Fast and Accurate
  • Save Time by Combining Multiple Processes Into a Single Step
  • Cut, Miter, Cope, Mark, Burn Holes and Slots
  • Draw Layout Lines for Easy Fit-Up

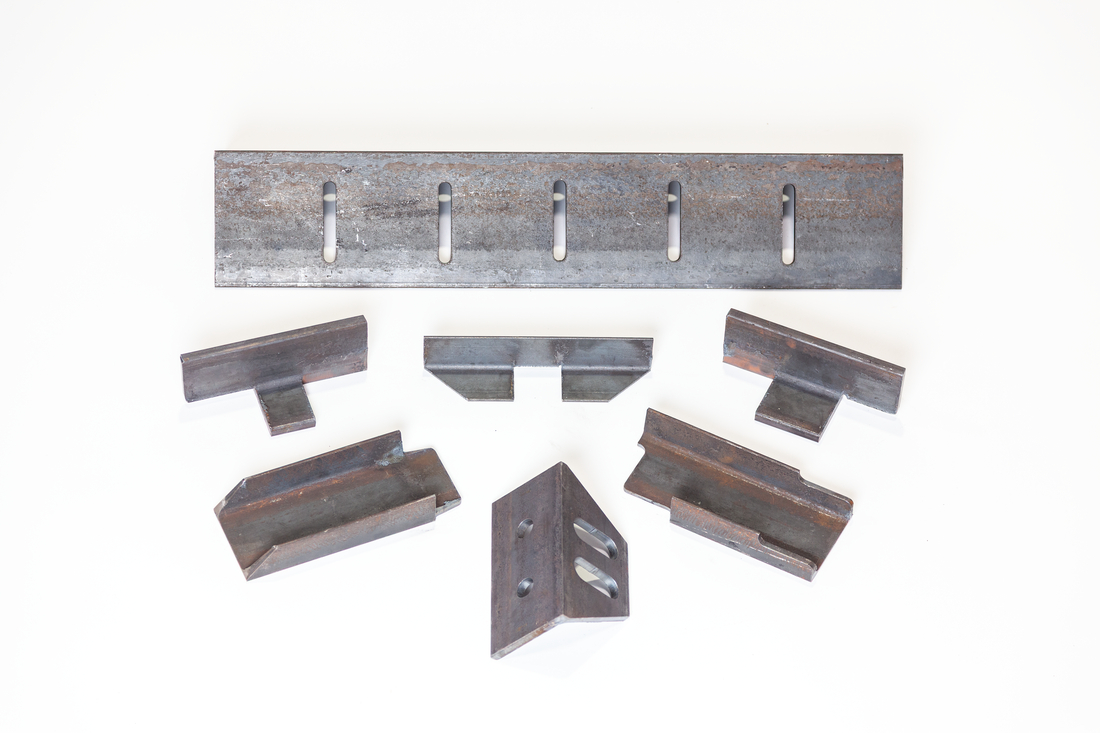

  • Run Angle Clips and Other Specific Parts Fast
  • Optimized Stair Stringer Layout Saves Time by Automating the Process
  • Eliminate Manual Measuring, Sawing, Notching, Drilling and Deburring
  • Eliminate Repetitive Material Handling and Downstream Processes
  • Produce Weld-Ready Miters and Copes Right from the Machine
  • Significantly Improve Fit-Up and Weld Penetration
  • Save Money by Offloading Work from a Beam Line or Robotic Coper While Keeping Projects In-House
  • Save Substantial Time Producing the Parts You Need
  • Additional Features
    • Automated Setup Laser Reduces Changeover Time and Increases Accuracy and Consistency

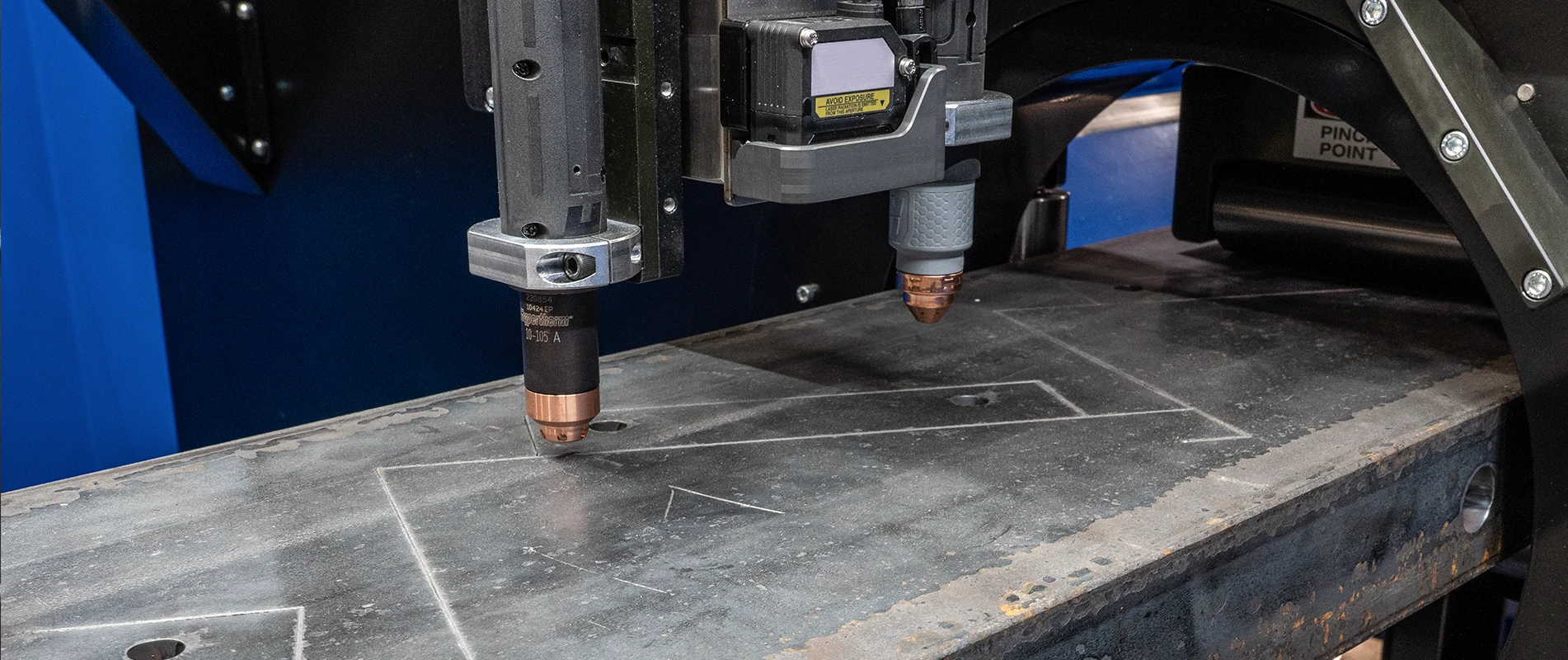

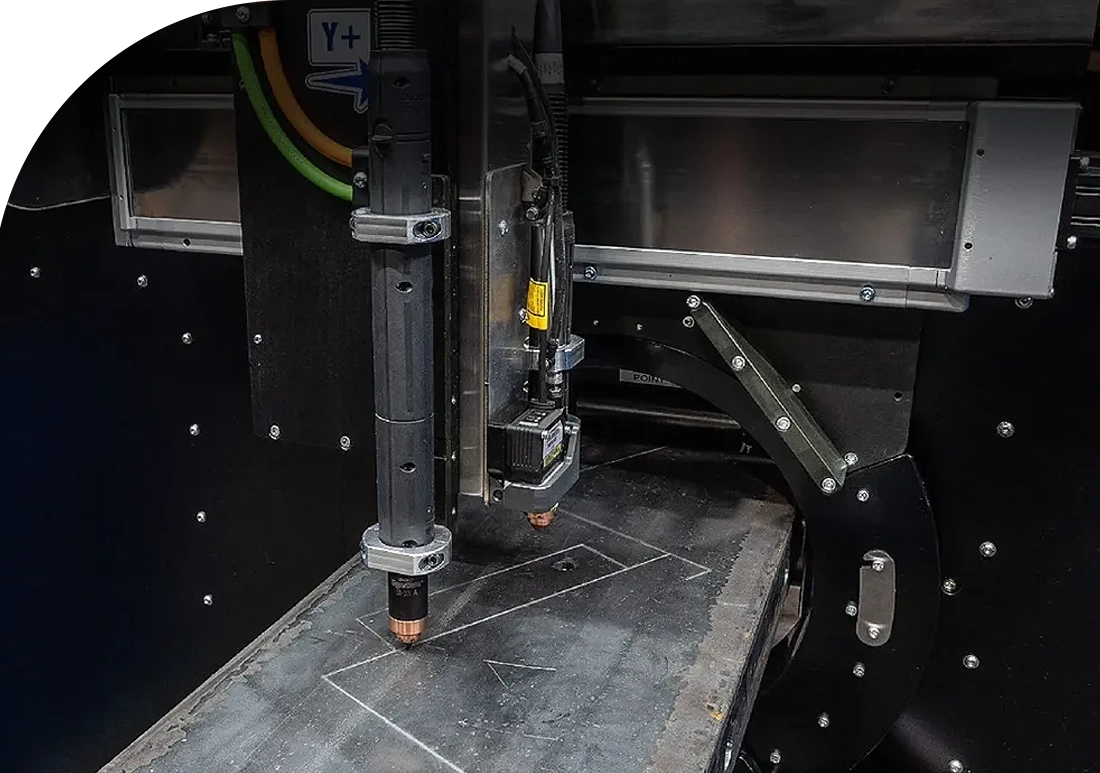

    • Powermax45 SYNC Plasma Marking System Simplifies Stair Stringer Layout and Part Marking
    • Pass-Through Auto Vice Allows for Processing of 60’ Material on a 27’ Footprint
    • Closed-Loop Servo Motors for Best-In-Class Accuracy and Repeatability
    • Breakaway Torch Prevents Costly Downtime
    • Self-Centering Front Support for Easy Material Changeover
    • Universal Front Support Reduces Time Switching From One Profile to the Next
  • Specifications

    Processes

    • Cuts
    • Miters
    • Copes
    • Marks
    • Burns Holes & Slots

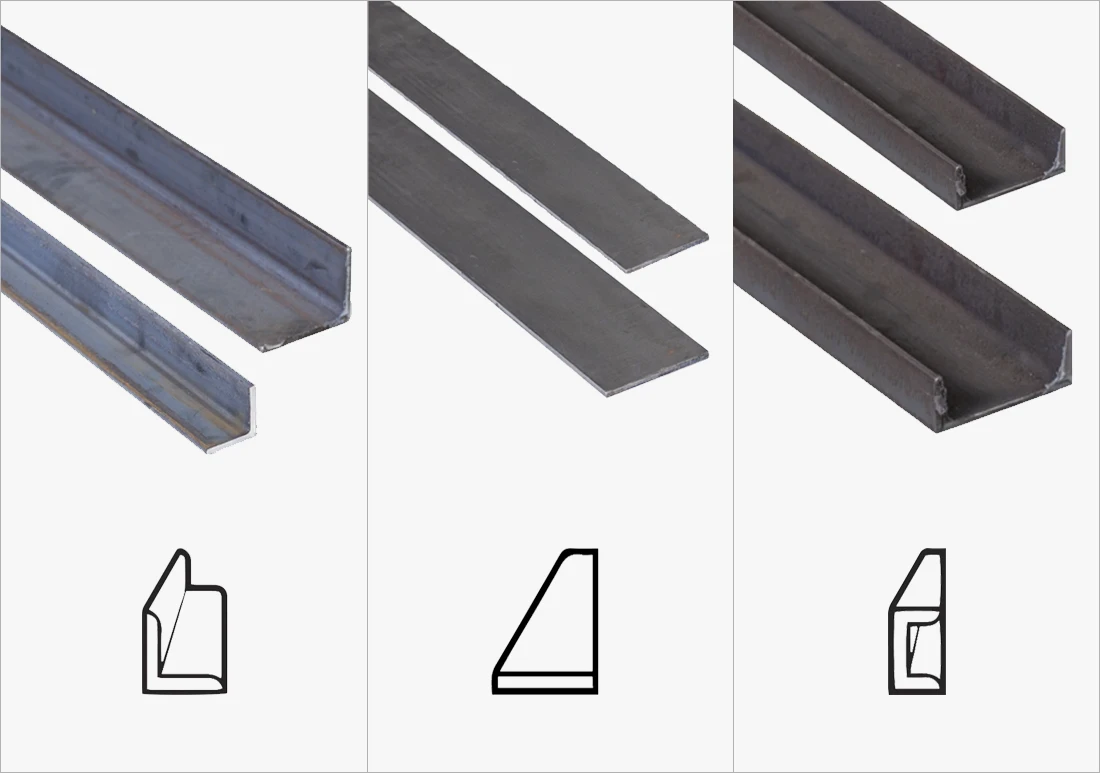

    Material Sizes

    • Channel stock up to C12 x 30lbs
    • Angle stock up to 8” x 8”
    • Flat stock up to 12”

    Technology

    • Hypertherm Powermax105 SYNC
    • Laser Material Alignment System

    Material Length

    • Maximum 60’

    Full Stick Load Capacity

    • Maximum 30 lbs / ft

    Max Work Piece Weight

    • 1,200 lbs

    Machine Footprint

    • ACPC
      461″ long, 137″ wide
    • ACPC w/ Dust Collection
      461″ long, 191″ wide

    Power Requirements

    • Machine Cabinet Requirements
      220VAC, 20A 1-PH
    • Hypertherm Requirements
      Varies based on PowerMax model
  • Programming

    Lantek Flex 3D
    Standard

    • For advanced programming and integration
    • Easily import industry-standard work files
    • Push programs and details to multiple machines
    • Maximize shop workflow and efficiency
    • Integrate with ERP/MRP systems
  • VIDEO: AC-PC Cutting L-Profile
